- Ex Tax: $340.00
- Brand: Kromschroder
- Product Code: IFD 258-5/1W 84621630
- Availability: In Stock

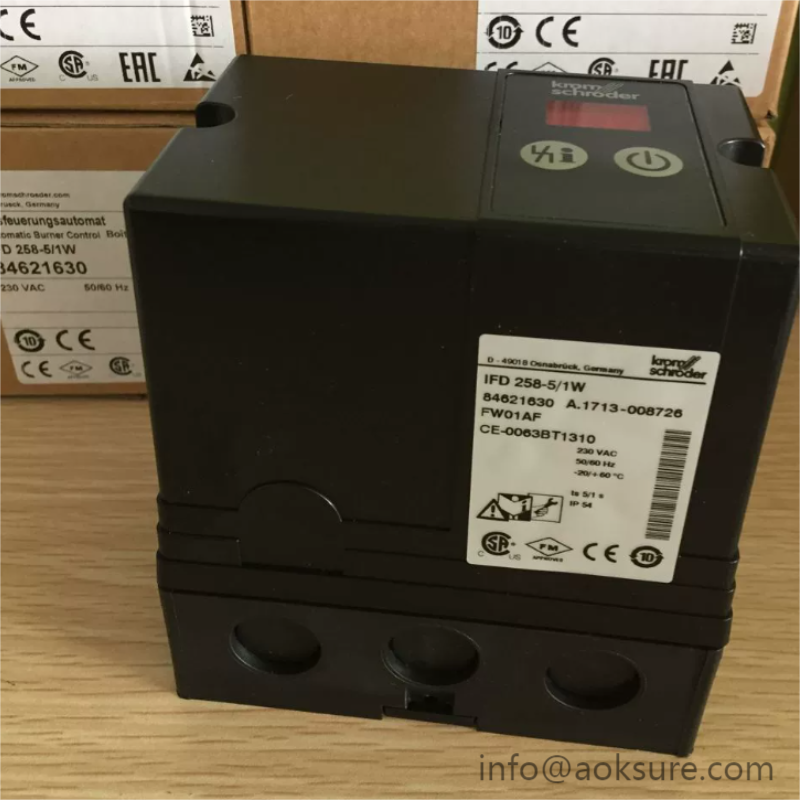

IFD 258-5/1W 84621630 Kromschroder
Model:IFD 258-5/1W 84621630
Name:Burner Control Unit
Manufacture:Kromschroder
The IFD 258-5/1W(84621630)is a burner control unit.This device is typically used in gas burners for industrial or commercial heating applications to ensure safe and efficient combustion.
The IFD 258-5/1W(84621630)unit performs flame control through a UV sensor or an ionization sensor.
Key Features:
1.Safety Functions:
Flame monitoring(ionization or UV sensor compatibility)
Pre-and post-purge control
Burner start-up and shutdown sequences
Fault diagnostics
2.Technical Specifications:
Voltage:230V AC,50/60Hz
Flame signal of the burner,measuring range:0–25µA.
Safety time on start-up:5 s
ignition current:25 mA,
spark gap:≤2 mm
Weight:770g
Control Outputs:Relay outputs for burner motor,gas valve,etc.
Flame Detection:Supports different flame sensor types
3.Applications:
The IFD 258-5/1W(84621630)can be used for atmospheric burners or forced draught burners in multiple burner applications,where a central
control system is used for pre-purge and for monitoring.
IFD258-5/1W
IFD258-10/1W
IFD258-3/1Q

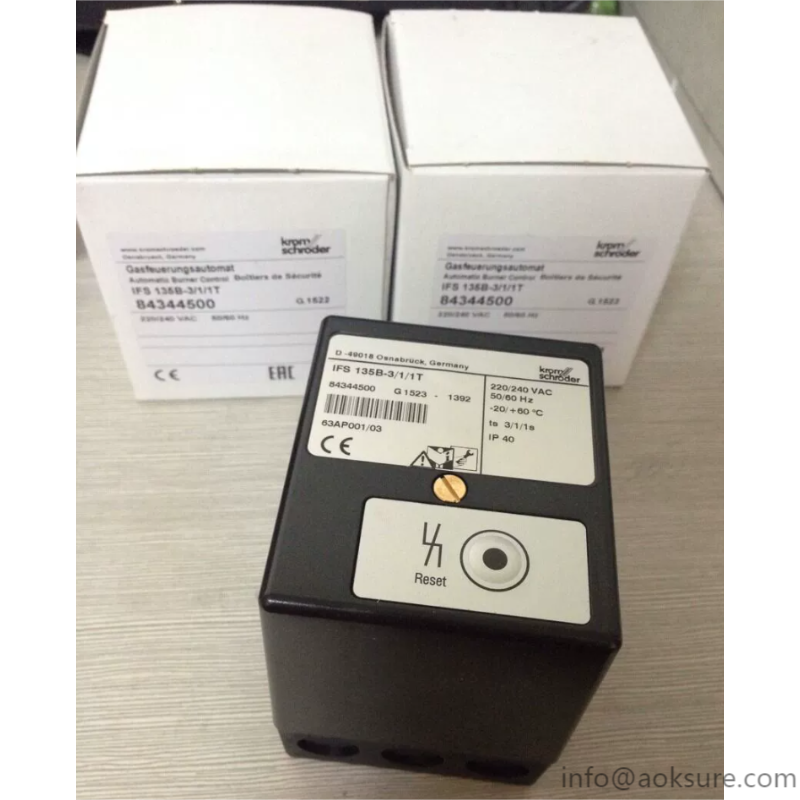

IFS 135B-3/1/1T
For more models, please contact us!
