- Ex Tax: $235.00
- Product Code: RJ71C24-R4
- Availability: In Stock

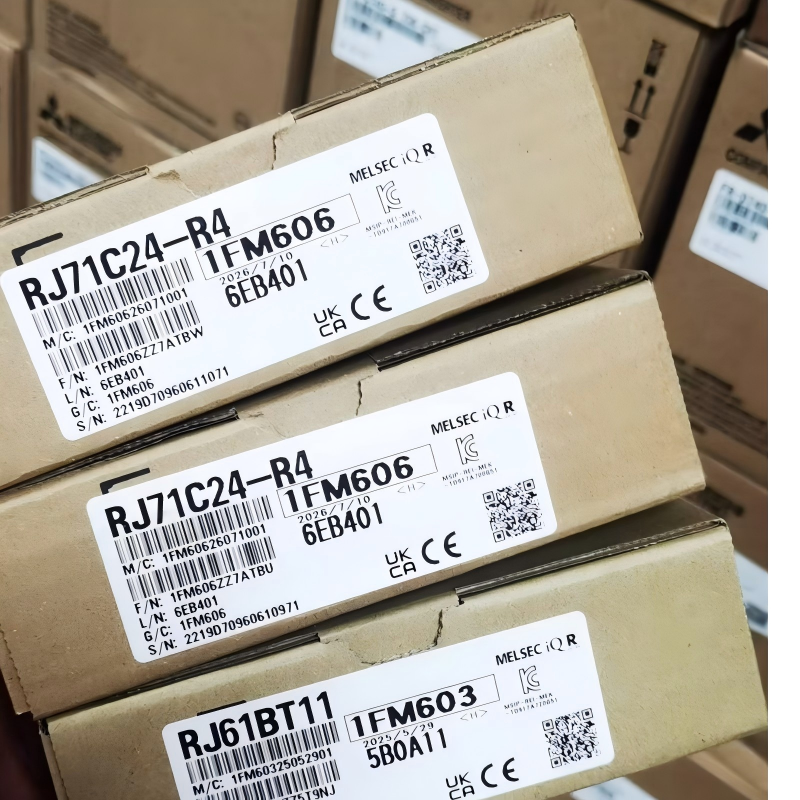

RJ71C24-R4
| Item | Specification |
|---|---|
| Model | RJ71C24-R4 |
| Description | Dual-channel RS-422/485 serial communication module |
| Channel Interface | CH1: RS-422/485, CH2: RS-422/485 (terminal block type) |
| Communication Mode | Full-duplex / Half-duplex |
| Synchronization | Start-stop synchronization |
| Baud Rate | 1200 / 2400 / 4800 / 9600 / 14400 / 19200 / 28800 / 38400 / 57600 / 115200 / 230400 bps |
| Max. Transmission Distance | 1200 m (RS-422/485) |
| Network Topology | 1:1, 1:n, n:1, m:n |
| Supported Protocols | MC Protocol, MODBUS RTU (Master/Slave), Predefined Protocol, Non-procedural Communication, Simple CPU Communication |
| Occupied I/O Points | 32 points (Intelligent module) |
| Internal Current Consumption | 0.42 A @ 5 V DC |
| Dimension (W × H × D) | 27.8 × 106 × 110 mm |
| Net Weight | 0.13 kg |
| Mounting | DIN rail, iQ-R base unit |
| Standards & Certifications | UL/cUL, CE, UKCA, ABS, BV, DNV GL, LR, NK, RINA, RoHS compliant |
| Operating Ambient Temp | 0 ~ 55 ℃ |
| Storage Temperature | -20 ~ 75 ℃ |
| Relative Humidity | 5 ~ 95% RH (non-condensing) |
| Model | Channel Configuration | Description |
|---|---|---|
| RJ71C24-R4 | CH1: RS-422/485CH2: RS-422/485 | Dual RS422/485 (this part) |
| RJ71C24-R2 | CH1: RS-232CH2: RS-232 | Dual RS232 |
| RJ71C24 | CH1: RS-232CH2: RS-422/485 | Mixed 1×RS232 + 1×RS422/485 |
