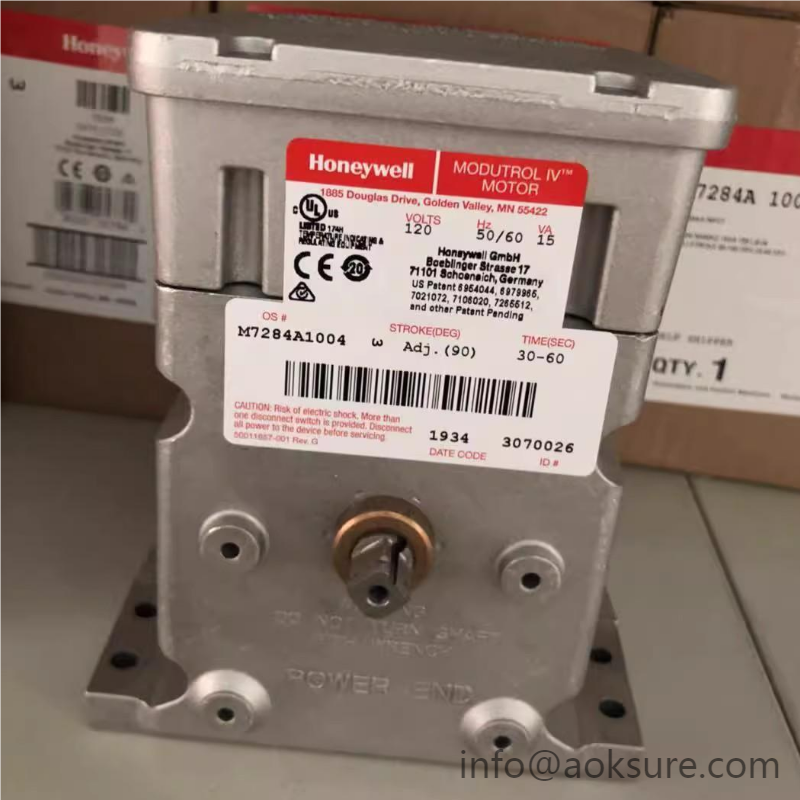

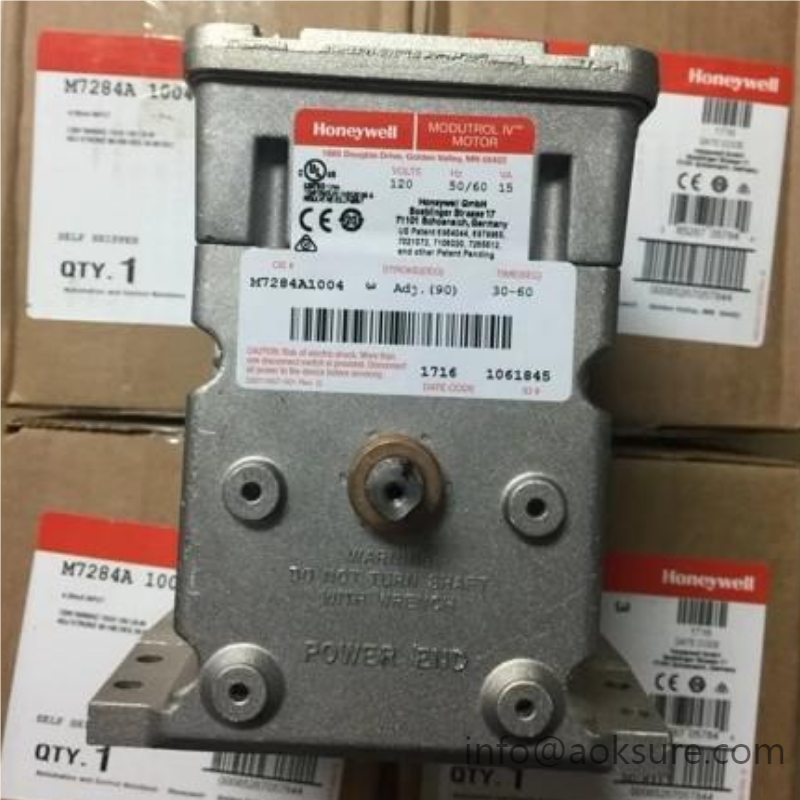

M7284A1004 actuator Honeywell
The Honeywell M7284A1004 Series Actuator Motor is a non-spring return motor used to control dampers and valves.
The Honeywell M7284A1004 Actuator is designed to provide precise and reliable operation for air handling systems.
The motor of the M7284A1004 Actuator accepts current or voltage signals from an electronic controller to position the damper or valve at any point between fully open and fully closed.
Specifications
Electrical Ratings:
Power Consumption:15VA 120V
Frequency:50Hz,60Hz
Input Range:
Current,Nonadjustable:4 to 20 mA nominal,25 mA maximum.
Current,Adjustable:4 to 20 mA adjustable,50mA maximum.
Zero/Null(Motor Closed):0.0 to 18 mA.
Span:1.8 to 20 mA.
Voltage,Nonadjustable:2 to 10 Vdc.
Input Impedance:
4 to 20 mA Input:100 ohms.
2 to 10 Vdc Input:400K ohms.
Dead Weight Load On Shaft:200 lb(91 kg)on motor power or auxiliary end;maximum combined load of 300 lb(136 kg).
Ambient Temperature Ratings:-40 to 150F(-40 to66°C).
Shaft:3/8 in.(9.5 mm)square.
Weight:5lb
Size:164mm high×140mm wide×185mm deep
We also have the following models:
M7284A1004
M7284A1012
M7284A1097
M7284C1000
