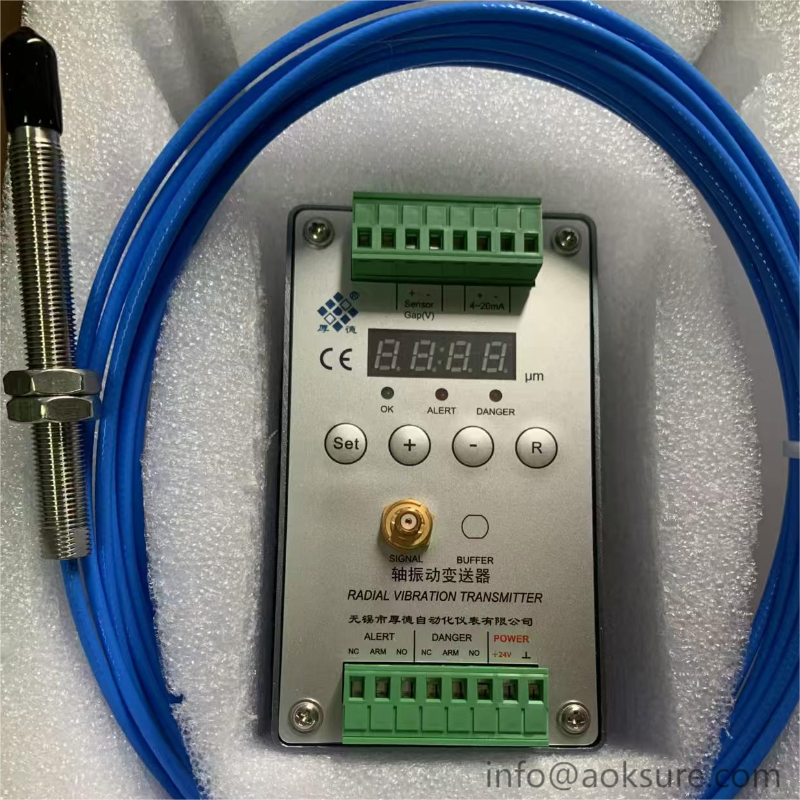

HZD-Z-6A Radial vibration Transmitter
The HZD-Z-6A Radial vibration transmitter is mainly used to monitor the radial vibration of rotors,measure rotating machinery,and output analog current and alarm shutdown signals.It can be easily connected to DCS and PLC systems.
Specifications:
1.Measurement parameters:radial vibration

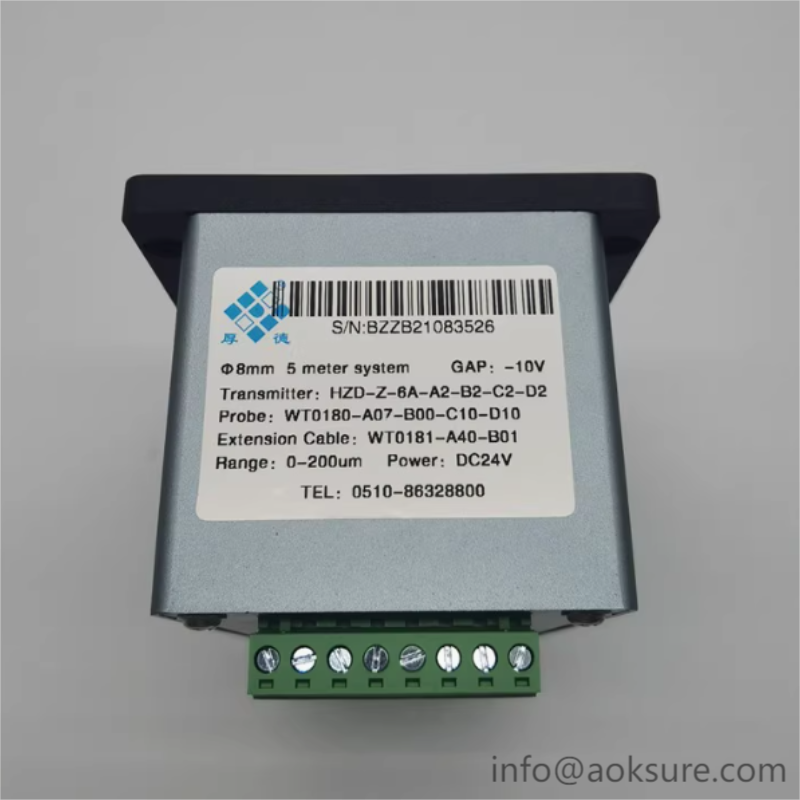

2.Transmitter:HZD-Z-6A-A2-B2-C2-D2
3.Probe:WT0180-A07-B00-C10-D10
4.Extension Cable:WT0181-A40-B01
5.Power:24VDC
6.Sensitivity:8.0V/mm
7.Range:0-500µm
8.Display mode:Four digit 0.28-inch LED digital display
9.LED indicator:OK green,Alert.Danger red
10.Measurement error:<1%full range
11.Current output:4~20mA
12.Alarm point setting:0~100%full range
13.Alarm relay:Node capacity 5AV/30VDC or 5A/220V AC
14.Sealing:Epoxy resin
15.11.Alarm reset mode:manual(on-site reset button,remote alarm reset terminal)
16.12.Buffer output:8.0V/mm raw signal output
17.temperature range:
Runtime:0℃~+65℃
During storage:-30℃~+85℃
18.Relative humidity:up to 95%,non condensing
19.Size:120×90×75mm
20.Weight:about 660g
21.Installation method:rail installation or on-site installation
Rail installation:35mm standard rail
On site size installation:90x80mm
More models available is following:
HZD-Z-6A-A2-B2-C2-D2
HZD-Z-7A
