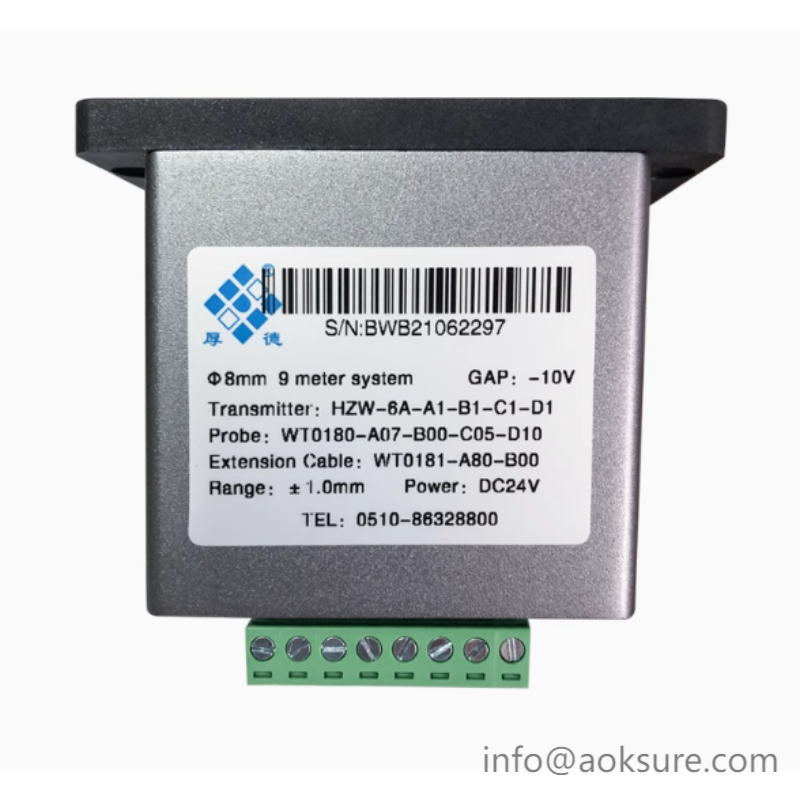

HZW-6A shaft displacement transmitter

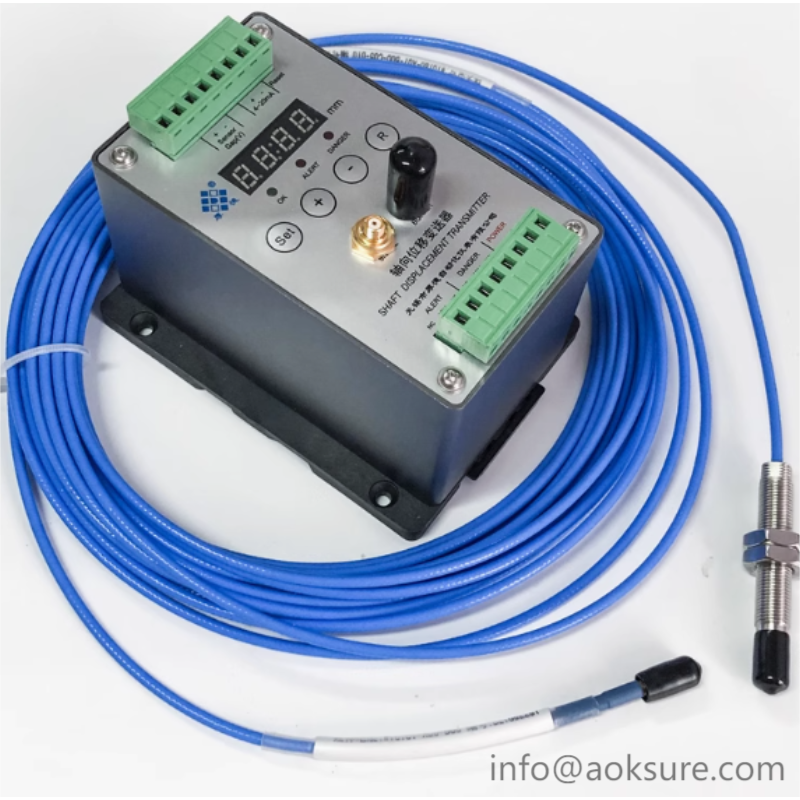

The HZW-6A integrated shaft displacement transmitter integrates a preamplifier,and the transmitter only requires a probe and extension cable to be matched.Mainly monitor the axial position of the rotating mechanical rotor relative to the bearing shell.
Specifications:
1.Transmitter:HZW-6A-A1-B1-C1-D1
2.Probe:WT0180-A07-B00-C05-D10
3.Extension Cable:WT0181-A80-B00
4.Power:DC24VDC
5.Sensitivity:8.0V/mm or 4.0V/mm
6.Range:±1.0mm
7.Display mode:Four digit 0.28-inch LED digital display
8.LED indicator:OK green,Alert.Danger red
9.Measurement error:<1%full range
10.Current output:4~20mA
11.Alarm point setting:0~100%full range
12.Alarm relay:Node capacity 5AV/30VDC or 5A/220V AC
13.Sealing:Epoxy resin
14.11.Alarm reset mode:manual(on-site reset button,remote alarm reset terminal)
15.12.Buffer output:8.0V/mm or 4.0V/mm raw signal output
16.temperature range:
Runtime:0℃~+65℃
During storage:-30℃~+85℃
17.Relative humidity:up to 95%,non condensing
18.Size:120×90×75mm
19.Weight:about 610g
20.Installation method:rail installation or on-site installation
More models available is following:
HZW-6A-A1-B1-C1-D1-F1
HZW-7A
HZD-Z-6A
HZD-Z-7A
